| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1p, IEEE 802.1q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s |
| LED indicators | One Link/Act LED indicator for each port
One Power LED indicator for each device
One SYS LED indicator for each device |

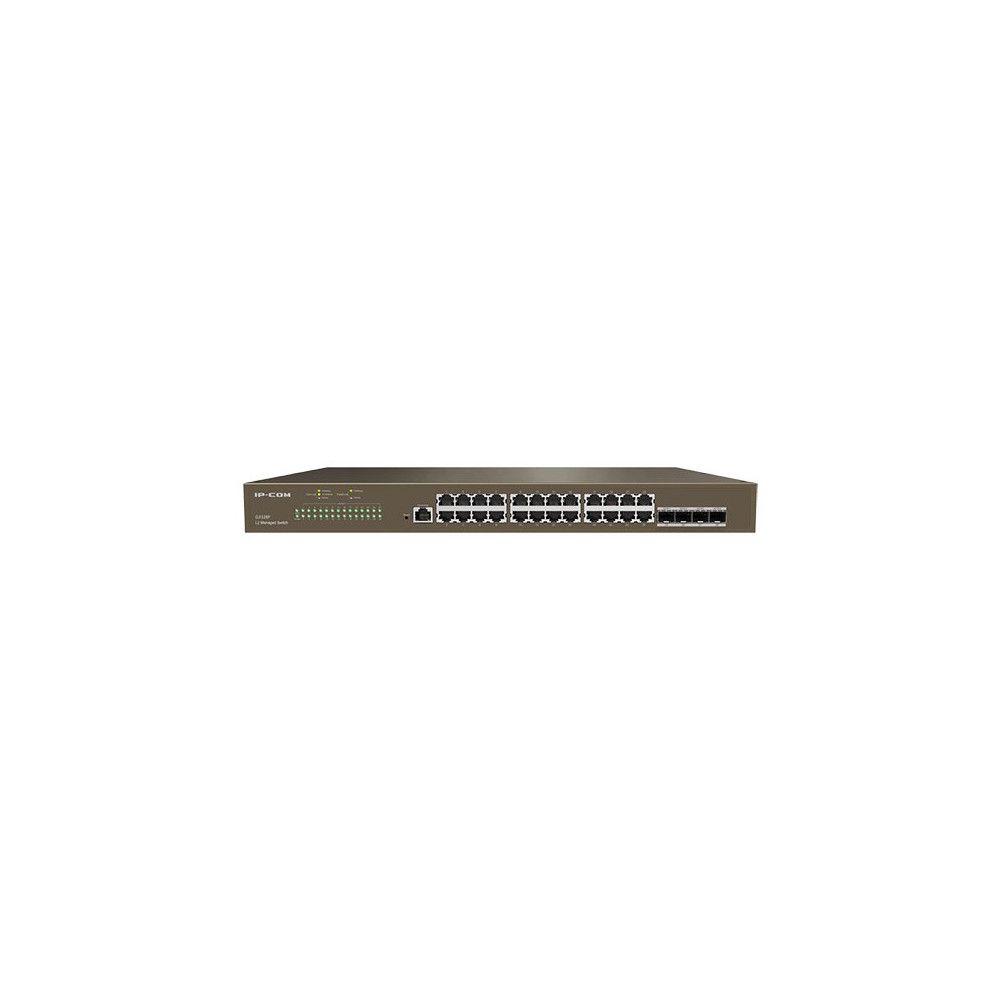

| Interfaces | 24 x 10/100/1000Base-T Ethernet ports
4 x 1000Base-X SFP ports
1 x Console port |
| Lightning protection | Port: 6kV
Power: 6kV |
| Forwarding mode | Store-and-forward |
| Switching capability | 56Gbps |
| Packet forwarding rate | 41.7Mpps |
| Buffer | 12Mbit |
| MAC address table | 16K |
| Input voltage | 100-240V～ 50/60Hz |
| Dimensions(L*W*H) | 440 mm x 179.6 mm x 44 mm |
| Operating environment | Operating temperature: 0°C - 45℃
Storage temperature: -40°C - 70°C
Operating humidity: (10% - 90%)RH, non-condensing
Storage humidity: (5% - 90%)RH, non-condensing |
| Certificates | CCC、FCC、CE、RoHS |
| Software specifications |
| Security features | Supports ARP receiving limit
Supports discarding unknown MAC addresses
Supports DoS attack defense
Supports 802.1x security authentication
Supports RADIUS authentication |
| VLAN | Supports 4K VLAN table
Supports IEEE 802.1Q VLAN
Supports three port link types: Access, Trunk and Hybrid |
| DHCP | Supports DHCP Snooping
Supports Option 82 policy configuration |
| Port aggregation | Supports static aggregation
Supports LACP dynamic aggregation
Supports a maximum of 32 aggregation groups and a maximum of 8 member ports in each group |
| Spanning tree | Supports IEEE 802.1d STP (Spanning Tree Protocol)
Supports IEEE 802.1w RSTP (Rapid Spanning Tree Protocol)
Supports IEEE 802.1s MSTP (Multiple Spanning Tree Protocol)
Supports edge ports
Supports BPDU statistics
Supports BPDU Guard, BPDU Filter
Supports Root Guard, Loop Guard
Supports Loopback-detection |
| Multicast | Supports IGMP Snooping V1/V2/V3
Supports port fast leave |
| Port Mirroring | Supports N: 1 port mirroring |
| QoS | Supports SP (Strict Priority)
Supports SWRR (Simple Weighted Round Robin)
Supports WRR (Weighted Round Robin)
Supports 802.1p port trust mode
Supports DSCP port trust mode
Supports a maximum of 8-queue service quality mapping
Supports Tail Drop
Supports storm suppression
Supports port speed limit |
| ACL | Supports MAC ACL
Supports IPv4 ACL |
| Loading and upgrade | Supports FTP/TFTP/HTTP upgrade
Supports configuration import and export |
| Cloud management | Supports configuration delivery from IMS cloud platform
Supports log reporting and fault detection
Supports remote maintenance: reboot, backup, upgrade |
| Local visualization management | Supports router, switch, AP, IP camera discovery
Supports automatic generation of topology
Supports online/offline status detection for devices
Supports remotely rebooting the IP camera |
| Management and maintenance | Supports Telnet configuration
Supports Console port configuration
Supports SNMP V1/V2/V3
Supports WEB UI management and maintenance
Supports Ping/Tracert Detection |
