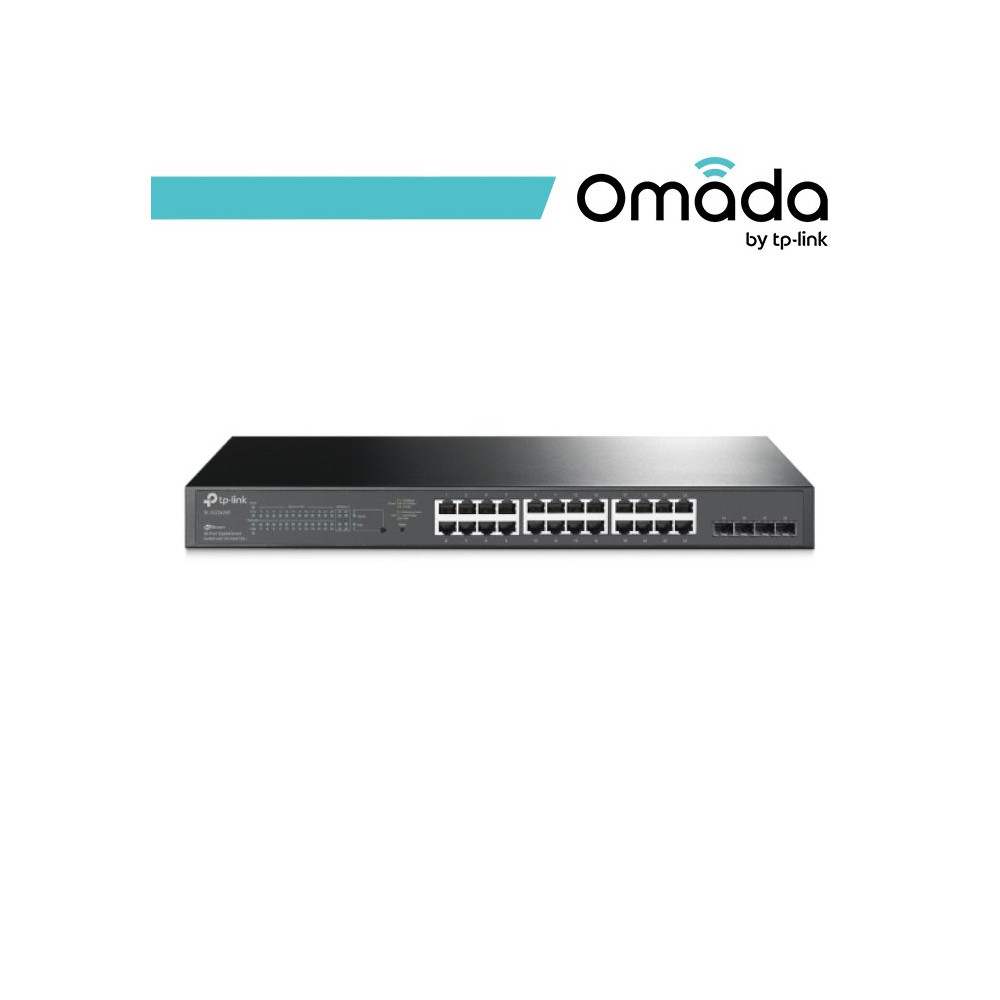

Omada Switch Smart 28 porte Gigabit di cui 24 PoE+ 250W OMA-SG2428P

Omada Switch Smart 28 porte Gigabit di cui 24 PoE+ 250W OMA-SG2428P

Omada
OMA-SG2428P/li
Nuovo
Omada Switch Smart 28 porte Gigabit di cui 24 PoE+ 250W
Affrettati! Solo 1 articoli rimasti in magazzino.
411,85 €
Tasse incluse

1 pezzi
Quantità

Ultimi articoli in magazzino
Aggiungi per confrontare
Aggiungi alla lista dei desideri
  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Switch Smart 28 Porte Gigabit di cui 24 PoE+ | Jetstream by Omada

  • Switch Gigabit PoE+ - Switch dotato di 28 porte Gigabit - 24 PoE+ e 4 SFP.
  • Power Budget totale - Alimentazione PoE+ 802.3at/af-compliant fino a 250 W su tutte le 24 porte PoE+.*
  • Dispositivo integrato Omada SDN - La nuova soluzione Omada Software Defined Networking consente di gestire le reti Omada con modalità Hybrid Cloud e Full-Cloud. Integra Access Point della serie EAP, Router VPN SafeStream e Switch JetStream by Omada.
  • App Omada - L'intuitiva app Omada, per dispositivi Android e iOS, consente di accedere da remoto alla rete tramite Cloud, in qualunque momento, ovunque ti trovi.
  • Routing Statico - Gestione efficace delle risorse di rete, ottimizzazione traffico dati interno.
  • Massima Sicurezza - IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, ecc.
  • Ottimizzazione video/voce - Con funzionalità L2/L3/L4 QoS e IGMP snooping.
  • Compatibile IPv6 - IPv6 con supporto dual IPv4/IPv6 stack, MLD snooping e IPv6 neighbor discovery.
  • CARATTERISTICHE HARDWARE
    Standard e protocolli IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
    Interfaccia • 24× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
    • 4× Gigabit SFP Slots
    Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
    • 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
    • 1000BASE-X: MMF, SMF
    Numero ventole 2
    Porte PoE+ • Standard: 802.3at/af compliant
    • PoE+ Ports: 24 Ports
    • Power Supply: 250 W
    Dimensioni ( L x P x A ) 17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm)
    Tipo di montaggio Rack Mountable
    Max Power Consumption • 32.1 W (110 V/ 60 Hz with no PD connected)
    • 308.6 W (110 V/ 60 Hz with 250 W PD connected)
    Max Heat Dissipation • 109.53 BTU/h (with no PD connected)
    • 1052.94 BTU/h (with 250 W PD connected)
    PRESTAZIONI
    Bandwidth/Backplane 56 Gbps
    Packet Forwarding Rate 41.7 Mpps
    Tabella ARP 8K
    Buffer (pacchetti) 4.1 Mbit
    Jumbo frame 9KB
    CARATTERISTICHE SOFTWARE
    QoS (Quality of Service) • 802.1p CoS/DSCP priority
    • 8 priority queues
    • Priority Schedule Mode
    - SP (Strict Priority)
    - WRR (Weighted Round Robin)
    • Queue Weight Config
    • Bandwidth Control
    - Port/Flow based Rating Limit
    • Smoother Performance
    • Storm Control
    - Multiple Control Modes(kbps/ratio)
    - Broadcast/Multicast/Unknown-Unicast Control
    Funzionalità L2 e L2+ • 16 IP Interfaces
    - Support IPv4/IPv6 Interface
    • Static Routing
    - 32 IPv4/IPv6 Static Routes
    • DHCP Server
    • DHCP Relay
    - DHCP Interface Relay
    - DHCP VLAN Relay
    • DHCP L2 Relay
    • Static ARP
    • Proxy ARP
    • Gratuitous ARP
    • Link Aggregation
    - Static link aggregation
    - 802.3ad LACP
    - Up to 8 aggregation groups and up to 8 ports
    per group
    • Spanning Tree Protocol
    - 802.1D STP
    - 802.1w RSTP
    - 802.1s MSTP
    - STP Security: TC Protect, BPDU Filter/Protect,
    Root Protect
    • Loopback Detection
    • Flow Control
    - 802.3x Flow Control
    • Mirroring
    - Port Mirroring
    - CPU Mirroring
    - One-to-One
    - Many-to-One
    - Flow-Based
    - Ingress/Egress/Both
    • Device Link Detect Protocol (DLDP)
    • 802.1ab LLDP/ LLDP-MED
    VLAN • VLAN Group
    - Max. 4K VLAN Groups
    • 802.1Q tag VLAN
    • MAC VLAN
    • Protocol VLAN
    • GVRP
    • Voice VLAN
    ACL (Access Control List) • Support up to 230 entries
    • Time-Range
    - Time Slice
    - Week Time-Range
    - Absolute Time-Range
    - Holiday
    • Time-based ACL
    • MAC ACL
    - Source MAC
    - Destination MAC
    - VLAN ID
    - User Priority
    - Ether Type
    • IP ACL
    - Source IP
    - Destination IP
    - IP Protocol
    - TCP Flag
    - TCP/UDP Source Port
    - TCP/UDP Destination Port
    - DSCP/IP TOS
    • IPv6 ACL
    • Combined ACL
    • Rule Operation
    - Permit/Deny
    • Policy Action
    - Mirror
    - Rate Limit
    - Redirect
    - QoS Remark
    • ACL Rules Binding
    - Port Binding
    - VLAN Binding
    • Actions for flows
    - Mirror (to supported interface)
    - Redirect (to supported interface)
    - Rate Limit
    - QoS Remark
    Sicurezza • AAA
    • 802.1X
    - Port based authentication
    - MAC (Host) based authentication
    - Authentication Method includes PAP/EAP-MD5
    - MAB
    - Guest VLAN
    - Support Radius authentication and
    accountability
    • IP/IPv6-MAC Binding
    - 512 Binding Entries
    - DHCP Snooping
    - DHCPv6 Snooping
    - ARP Inspection
    - ND Detection
    • IP Source Guard
    - 253 Entries
    - Source IP+Source MAC
    • IPv6 Source Guard
    - 183 Entries
    - Source IPv6 Address+Source MAC
    • DoS Defend
    • Static/Dynamic/Permanent Port Security
    - Up to 64 MAC addresses per port
    • Broadcast/Multicast/Unicast Storm Control
    - kbps/ratio control mode
    • Port Isolation
    • Secure web management through HTTPS with
    SSLv3/TLS 1.2
    • Secure Command Line Interface (CLI)
    management with SSHv1/SSHv2
    • IP/Port/MAC based access control
    IPv6 • IPv6 Static Routing and ACL
    • IPv6 Dual IPv4/IPv6
    • IPv6 Interface
    • Multicast Listener Discovery (MLD) Snooping
    • IPv6 neighbor discovery (ND)
    • Path maximum transmission unit (MTU) discovery
    • Internet Control Message Protocol (ICMP)
    version 6
    • TCPv6/UDPv6
    • IPv6 applications
    - DHCPv6 Client
    - Ping6
    - Tracert6
    - Telnet(v6)
    - IPv6 SNMP
    - IPv6 SSH
    - IPv6 SSL
    - Http/Https
    - IPv6 TFTP
    GESTIONE
    Omada App Yes
    Centralized Management • Omada Cloud-Based Controller
    • Omada Hardware Controller (OC300)
    • Omada Hardware Controller (OC200)
    • Omada Software Controller
    Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
    Management Features • Web-based GUI
    • Command Line Interface (CLI) through telnet
    • SNMPv1/v2c/v3
    • SNMP Trap/Inform
    • RMON (1,2,3,9 groups)
    • SDM Template
    • DHCP/BOOTP Client
    • Dual Image, Dual Configuration
    • CPU Monitoring
    • Cable Diagnostics
    • EEE
    • SNTP
    • System Log
    ALTRO
    Certificazione CE, FCC, RoHS
    Contenuto della confezione TL-SG2428P
    • Power Cord
    • Installation Guide
    • Rackmount Kit
    • Rubber Feet
    Requisiti di sistema Microsoft® Windows® XP, Vista™ or Windows 7, Windows 8, Windows 10, MAC® OS, NetWare®, UNIX® or Linux.
    Ambiente • Operating Temperature: 0–50 ℃ (32–122 ℉);
    • Storage Temperature: -40–70 ℃ (-40–158 ℉)
    • Operating Humidity: 10–90% RH non-condensing
    • Storage Humidity: 5–90% RH non-condensing
