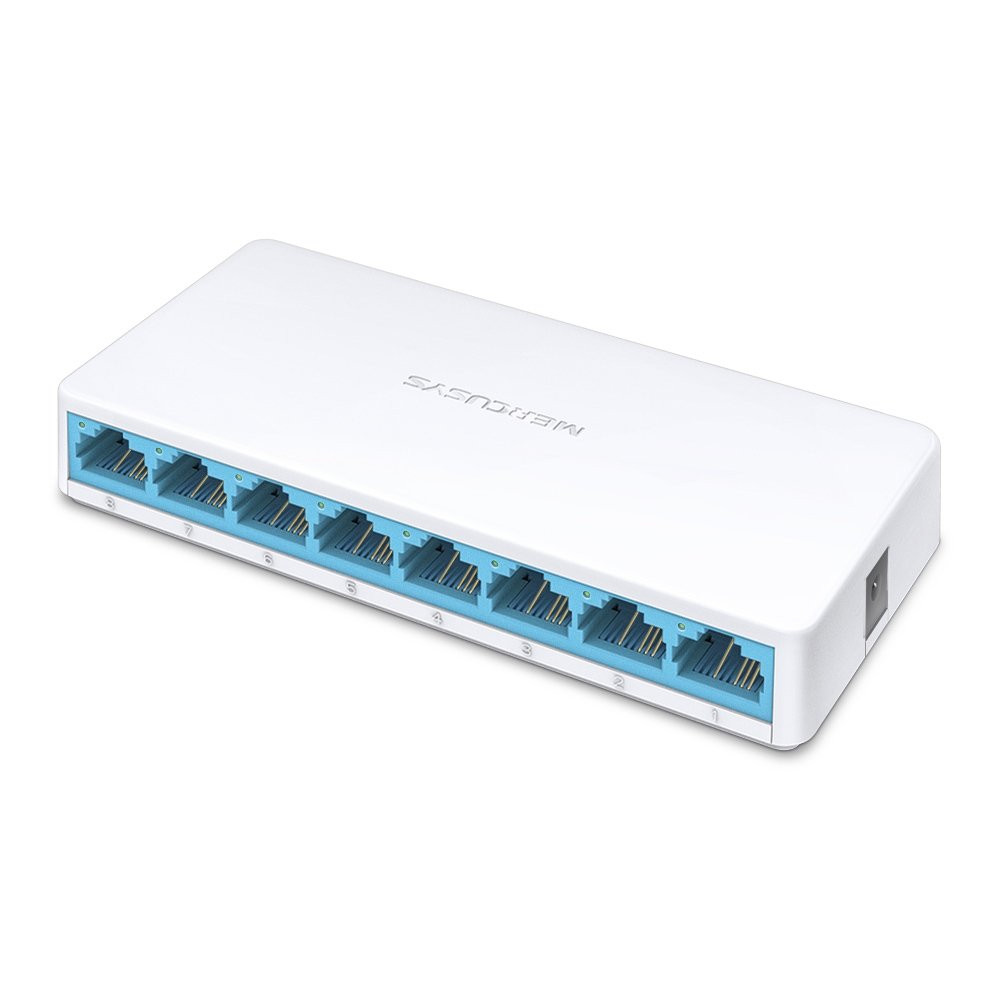

Switch Desktop 8-Porte 10/100Mbps

1. 8 porte 10/100Mbps RJ45 con auto-negoziazione e auto MDI / MDIX
2. Estensione semplice della rete cablata
3. Design compatto per posizionamento flessibile
4. Plug and play: nessuna configurazione richiesta

Software

Transfer Method

Store and forward

Hardware

Dimensioni (W X D X H)

127 x 60.3 x 22 mm

Interfaces

8 10/100Mbps ports, auto-negotiation, auto-MDI/MDIX

External Power Supply

External power adapter

(Output: 5.0VDC / 0.6A)

Standards and Protocols

IEEE 802.3, IEEE 802.3u, IEEE 802.3x

CSMA/CD

Fan Quantity

Fanless

Data Rates

10/100Mbps at half duplex

20/200Mbps at full duple

Buffer Capacity

768Kb

Jumbo Frame

2KB

Switching Capacity

1.6Gbps

LED

Ethernet (1, 2, 3, 4, 5, 6, 7, 8), Power

Other

Certifications

CE, RoHS

Package Contents

8-Port 10/100Mbps Desktop Switch

MS108

Power adapter

Quick installation guide

Environment

Operating temperature: 0°C~40°C (32°F~104°F)

Storage temperature: -40°C~70°C (-40°F~158°F)

Operating humidity: 10% ~ 90% non-condensing

Storage humidity: 5%~90% non-condensing

Others
